Changing Filters on a Tier 3 5700-C



Changing the filter on your machine is crucial to ensure the health and safety of its operation. Filters should be changed at 50 hours on a new machine and every 250 hours after that.

This video is a quick guide to changing filters on a Power Curbers  Tier 3 5700-C.

Make sure the engine and fluids are cool before doing any maintenance on your machine.

Also be sure to relieve pressure trapped in the hydraulic system.

You can do this by depressing the bleeder valve/ located on top of the tank/ until you stop hearing air escape.

First we will look at the Hydraulic Return filters. There are 2 return filters. Located on top of the tank.

Remove the 4 bolts on each filter cap.

Remove each cap and inspect the o-rings

Replace the o-rings if they are damaged.

Remove the old elements. Insert the new elements/ and reinstall the caps.

Also on top of the tank, is the Breather Filter.

It is attached to a long tube, in the middle of the tank.

This filter simply unscrews from the tube and the new one can be attached.

Below the engine compartment doors, you can find the Servo Filter.

The Servo Filter is accessed from underneath the machine.

It is in a reddish brown housing.

Remove the housing and remove the old element.

Insert the new element, and reinstall the housing.

Several filters reside inside the engine compartment.

One is the Charge filter, which is on the right side of the engine compartment; in a black housing.

Unscrew the housing and remove the old filter.

Insert the new element, and reinstall the housing.

After servicing your filter check the hydraulic level oil sight glass it will certainly need to be topped off.

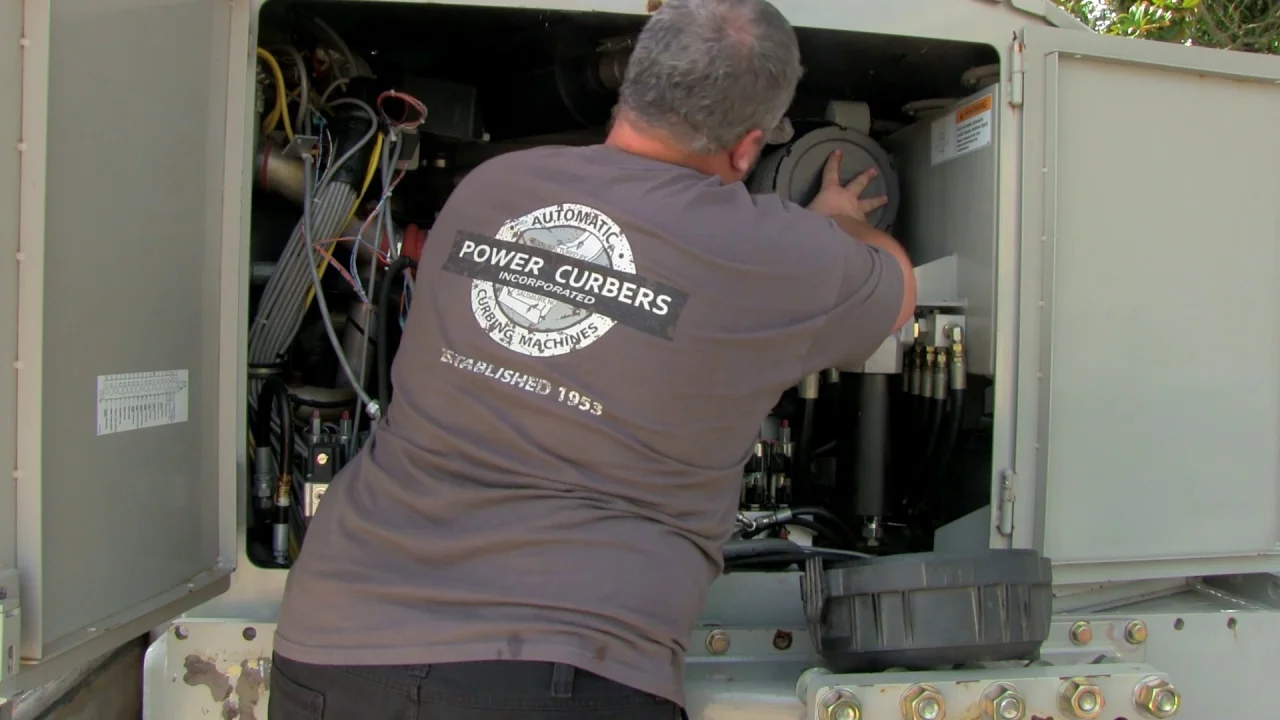

Above the Charge filter, is the large black air filter housing.

Lift the plastic lock, and rotate the end cover counterclockwise.

This will allow you to remove the end cover.

There is a Primary, and Secondary Air filter.

Remove both elements and replace with the new filters.

Reinstall the housing cover and rotate it clockwise until it locks.

There are 2 fuel filters on the machine.

Before servicing the fuel filters, close the fuel valve located beneath the tank.

The Primary Fuel filter is mounted to the engine, near the top.

This filter spins off.

Do NOT Prefill the new filter.

Install the Fuels Filter DRY.

The Pre Fuel Filter is also a water separator.

It is located behind the Charge filter, lower than the Primary fuel filter.

Be careful, there are wires on the bottom of the filter; they must be unplugged before the filter is removed.

This filter also has a water drain valve on the bottom.

Be sure the valve on the new filter is closed before you install it.

Again, install the fuel filters dry.

Remember to reinstall the wires after the new filter is installed.

Now you can reopen the valve on the tank.

A primer pump is part of the filter housing.

This pump will prime both fuel filters.

Pump the primer until the resistance becomes firm, then try to start the engine.

If the engine does not start within 30 seconds of cranking, repeat the priming process.

Clean fuel is essential for modern low emissions engines.

The site glass, for the engine coolant, is at the very top of the engine compartment, on the surge tank.

Make sure the machine is level before checking the site glass.

The coolant level should be in the middle of the site glass.

If it is low, add coolant through the top of the surge tank.

You should add a mix of 50% water, and 50% extended life coolant.

The Engine Oil Filter is on the “mold” side of the engine.

There is an access panel behind the mold, and above the vibrator quick connects.

Remove the access panel using the 2 latches.
From underneath the machine drain the oil from the pan using a drain tube.

After draining the oil, remove the drain tube, and replace the cap.

Now, you can change the oil filter.

Unscrew the old filter.

Fill the new filter with clean oil, lubricate the seal, and install the new filter.

Now fill the engine with oil meeting Cummins specifications.

The engine holds 16.5 quarts, or 15.6 liters of oil.

Filters should be changed at 50 hours on a new machine.

After that, they should be changed every 250 hours.

Hydraulic oil should be replaced every 2000 hours, or every 2 years.

You have now performed a complete filter change on your 5700C.
