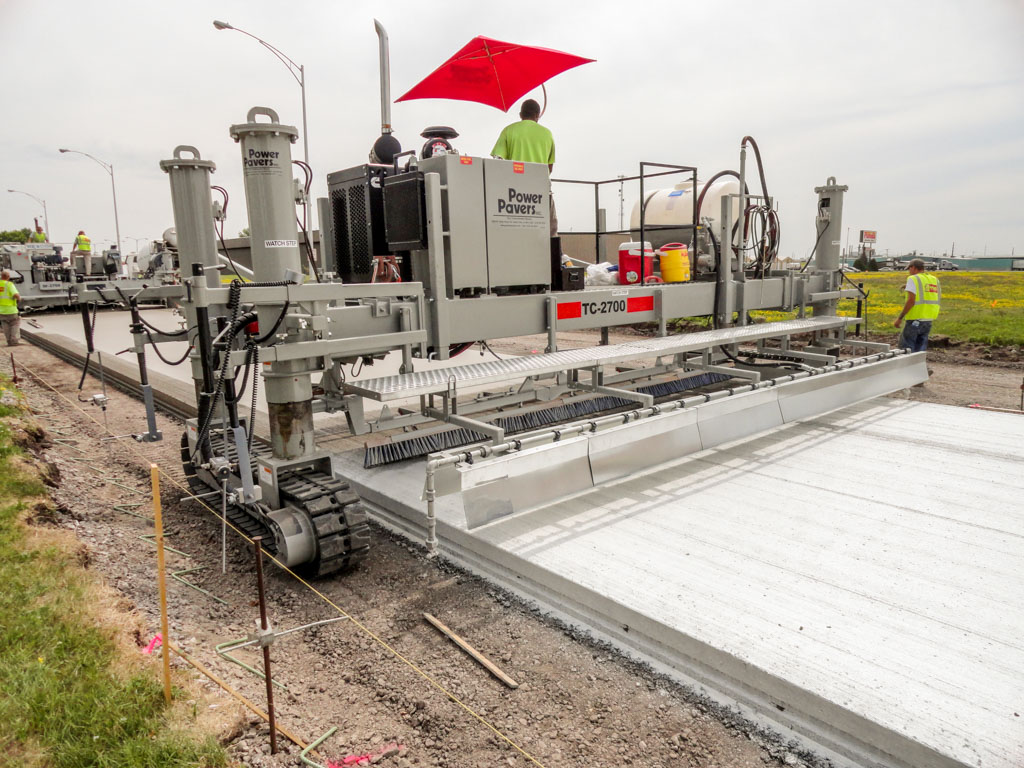

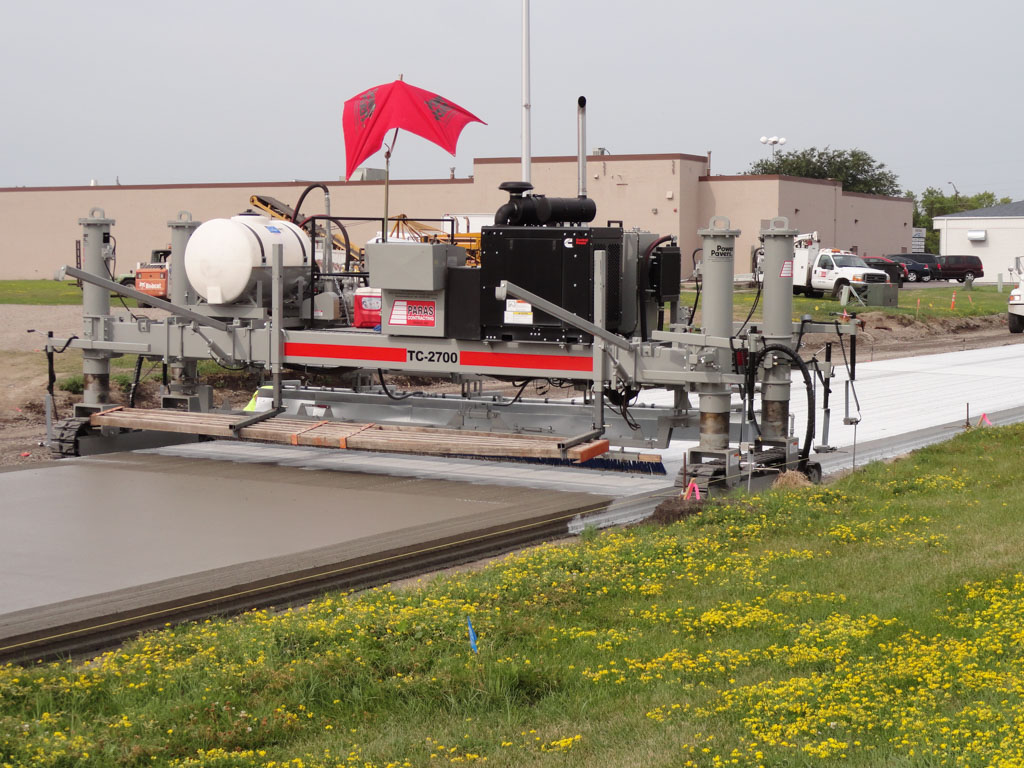

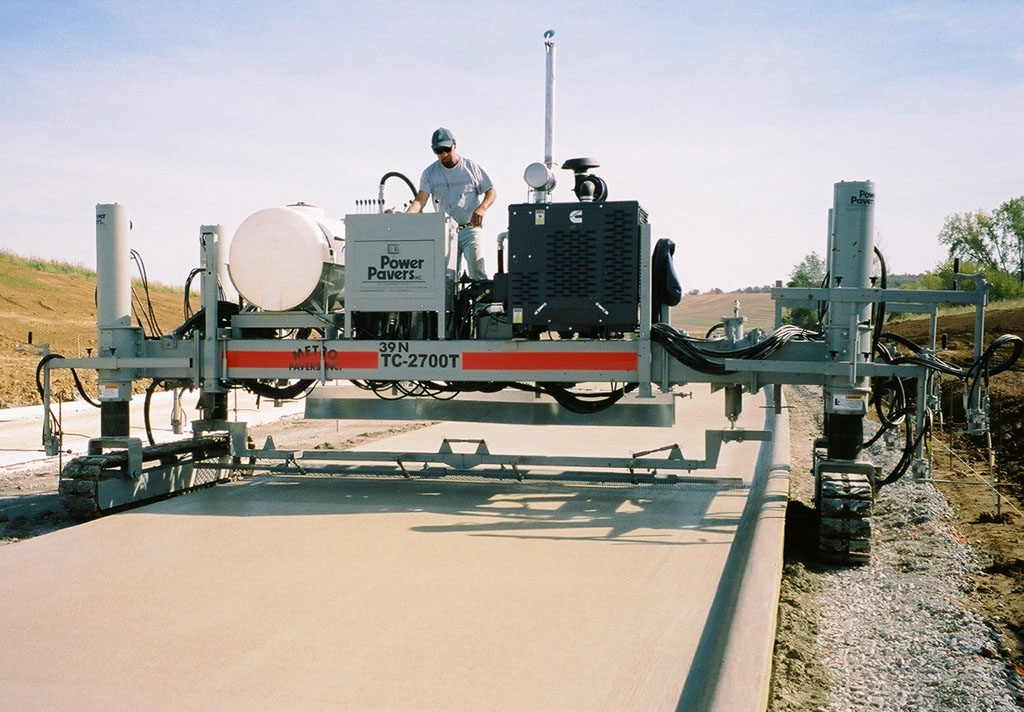

TC-2700 Texture/Curing Machine

Product Features:

DIESEL ENGINE

Gross horsepower @ 2,600 rpm, 85 hp (63.38 kw) Cummins BT3.3-85hp diesel engine, Four stroke, 4 cylinders, 3.7” (95mm) bore, 4.5” (115mm) stroke, 199 cu. in. (3.26 liters) displacement.

DRIVE SYSTEM

Operating range from 0-100 fpm (0-30.5mpm).

Propulsion is provided by two 12” (30.48cm) wide by 8’-6” (259.08cm) polyurethane pad track systems.

MAINFRAME

Rigid frame construction. Unit is widened by adding additional sections.

HYDRAULIC POWER

Engine driven direct drive, pressure compensated, variable volume pump provides power flow to all functions.

OPERATOR CONTROLS

Throttle level, master start-stop switch, steering selector, texture head speed control, texture head elevation control, curing spray pump control, spray bar on-off control.

AUTOMATIC CONTROL SYSTEM

Automatic steering through left or right-hand side mounted proportional hydraulic sensors controlled by preset string-line or form-line.

TEXTURING HEAD

5’(1.52m) or 10’(3.05m) transverse broom is speed controlled and will conform to all crown configurations. The broom has auto kick-up at the end of travel. Capable of texturing slabs up to 24” (60.96cm) in depth.

CURING SPRAY BAR

Skirted spray bar with no drip stainless steel nozzles spaced 12” (30.48cm) on center. Spray bar adjustable in height to accommodate 24” (60.96cm) slabs. Reservoir includes lines and valves to load or off-load.

Power Pavers TC-2700

OPERATING DIMENSIONS
Length with burlap drag 16’-3.5” (4.97m)
Length without burlap drag 8’-6” (2.59m)
Width 16’ (4.88m) to 32’ (9.75m)
Slab width 12’ (3.66m) to 27’ (8.23m)

TRANSPORTATION DIMENSIONS

Length 16’ (4.88m) to 32’ (9.75m)
Width 8’-6” (2.59m)
Height 10’-4” (3.15m)
Weight 11,500 lbs. (5,216.2 kg)
Weight at
27’ (8.23m)
15,000 lbs. (6,803.7 kg)Weight will vary depending on options and widths.

SERVICE REFILL CAPACITIES

Liters Gallons
Fuel Tank 132.48 35
Engine Oil 10.6 2.8
Hydraulic Oil 264.97 70
Spray System Reservoir 567.79 150

OPTIONAL EQUIPMENT

  • 5’(1.52m) Texture broom extension for 10’(3.05m) broom
  • Reverse auto steering
  • Front burlap drag (hydraulically lifted)
  • Hydraulic elevation control
  • Includes four hydraulically operated leg cylinders, with hydraulic proportional elevation control sensors
  • Extension kit to 32’(9.75m)
  • Pressure power wash unit
  • Longitudinal tining option
