Power Pavers recently announced the launch of the industry’s newest full-width, four-track concrete slipform paver: the Power Paver SF-3404. Built with decades of knowledge and technological advancements, the SF-3404 delivers contractors the smoothest ride possible, saves valuable time, and provides complete visibility surrounding the machine.
It paves a maximum of 40 ft. (12 m) and features telescoping endpans for 2 ft. (61 cm) of width flexibility on each end. In addition, a heavy-duty plow, rigid paving pans and durable slew drives make the SF-3404 highly reliable and efficient.
Also new with the SF-3404 is an optional compact, fully-controlled Dowel Bar Insertion (DBI) system. It is equipped with a hydraulic floating floor to maintain the integrity of the initial slab and improve reconsolidation around dowel bars after the insertion process. Each time the DBI runs, the carriage recalibrates with electronic sensors to ensure the floor is exactly where it should be. In addition, the DBI is split to allow for accurate crowning and bar placement. Each bar is held and guided into the concrete to prevent skewing, even while crowning. When running DBI, the machine utilizes a collision avoidance system to prevent center tie bars and DBI from inserting at the same location.
President of Power Curbers Companies
Decades of experience have been put into designing the SF-3404, and we’re proud to put the Power Pavers name on it.
Stephen Bullock
“I’m extremely impressed by this paver,” said Matt Fonte of Fonte and Company. “It is a heavy-duty and well-designed paver capable of building some amazing concrete pavements, even under harsh conditions. The DBI is everything you could ask for— reliable bar placement with low IRI profile numbers.”
To create the smoothest ride possible, the SF-3404 is equipped with the industry’s longest Oscillating Correctional Beam (OCB) for smoothing the slab’s surface after dowel bar insertion. Power Pavers engineered a unique, heavy-duty OCB that is 30 in. (76 cm) tall with a 24 in. (61 cm) finishing length for full coverage over the dowel insertion void. The OCB corrects any surface imperfections with ease. For transportation, the DBI, OCB, OCB wiper and fi nal finisher are contained in a single assembly.
The machine’s durable plow, fully controlled DBI, and large OCB contribute to a smooth paving operation from start to finish. Machine features also allow contractors to pave with a wet or dry slump.
“I had to see it to believe it,” said Lane H., of Manitowoc, Wisconsin, after seeing the machine in action on a jobsite in Iowa.

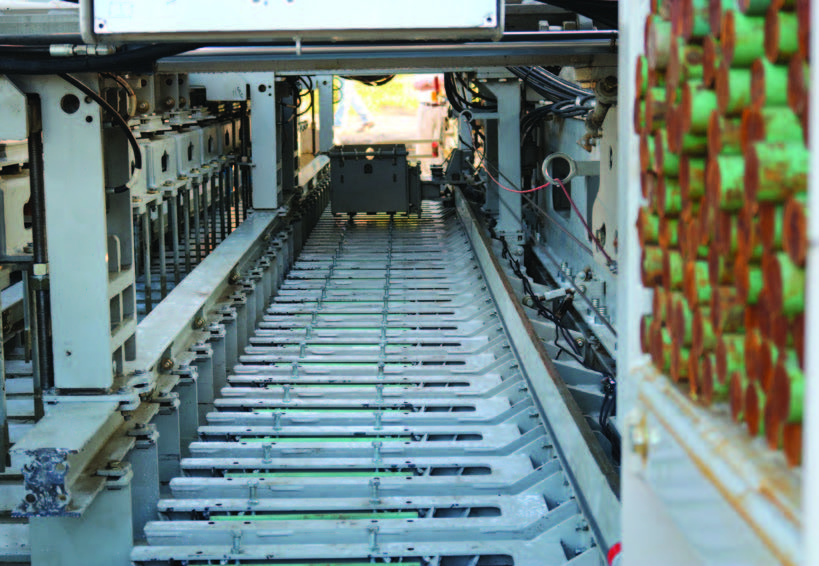

The SF-3404 is equipped with an optional compact Dowel Bar Inserter (DBI).
Numerous additional features make the SF-3404 the most innovative slipform paver on the market. A unique vibrator cruise control automatically adjusts the machine’s vibrators to maintain consistent speed despite fluctuations in oil viscosity or changes in concrete slump. For super-elevations and intersections, an exclusive crown-distance compensation feature provides automated crown transitions between the mold, DBI and OCB.
“Decades of experience have been put into designing the SF- 3404, and we’re proud to put the Power Pavers name on it,” said Stephen Bullock, President of Power Curbers Companies.
As with other Power Pavers, the SF-3404 is designed with simplicity in mind. The machine features numerous other thoughtful details to simplify operators, finishers, and mechanics’ jobs. It is equipped with Power Pavers’ signature SlipSmart control system for simple, highly configurable machine controls. All machine diagnostics are onboard, with no laptop required. The new system provides fault codes for everything on the machine, including the DBI. Common bolt sizes and color-coded wiring throughout the machine keep maintenance simple.
For more information on the Power Paver SF-3404, please call 704-636-5871
