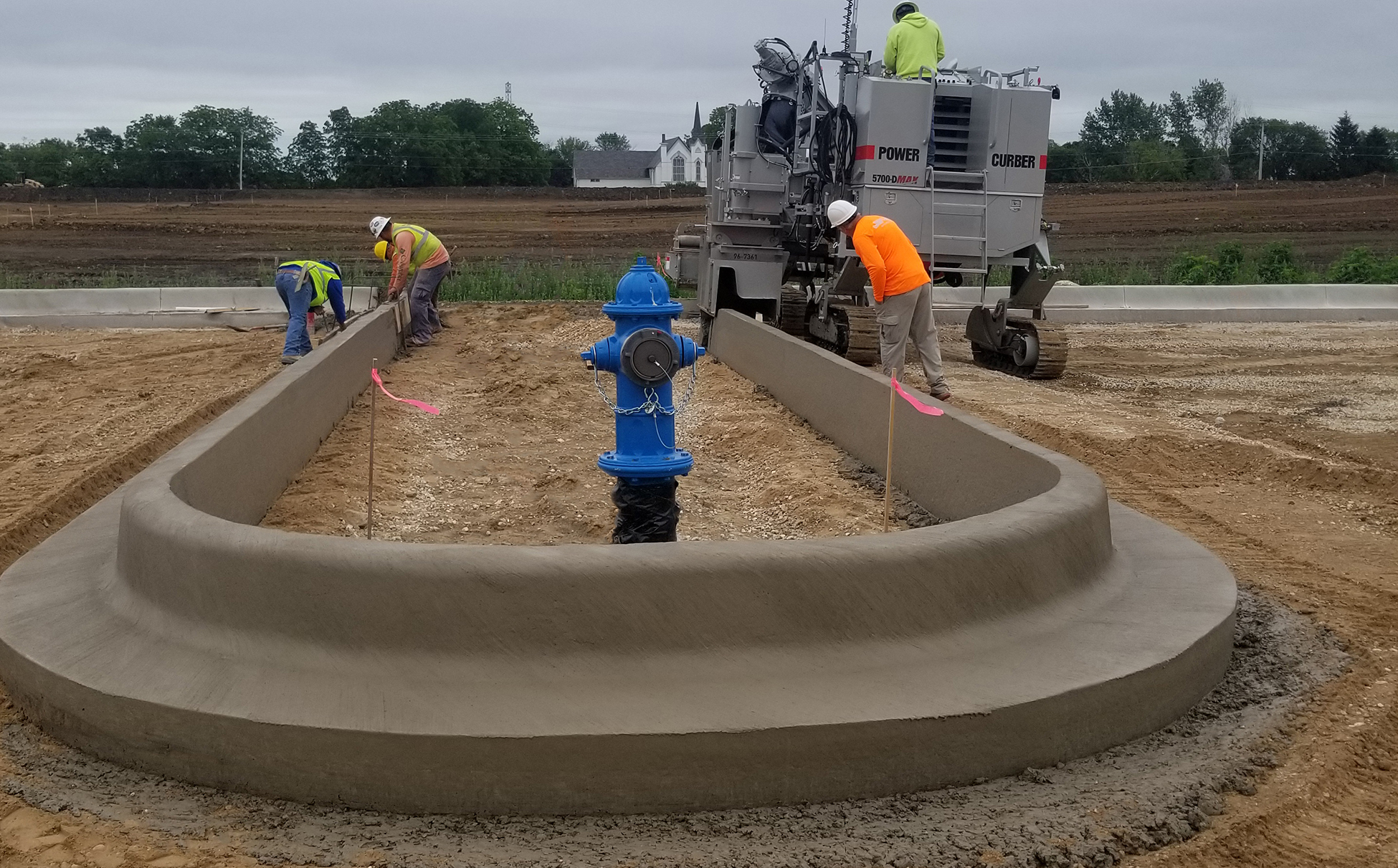

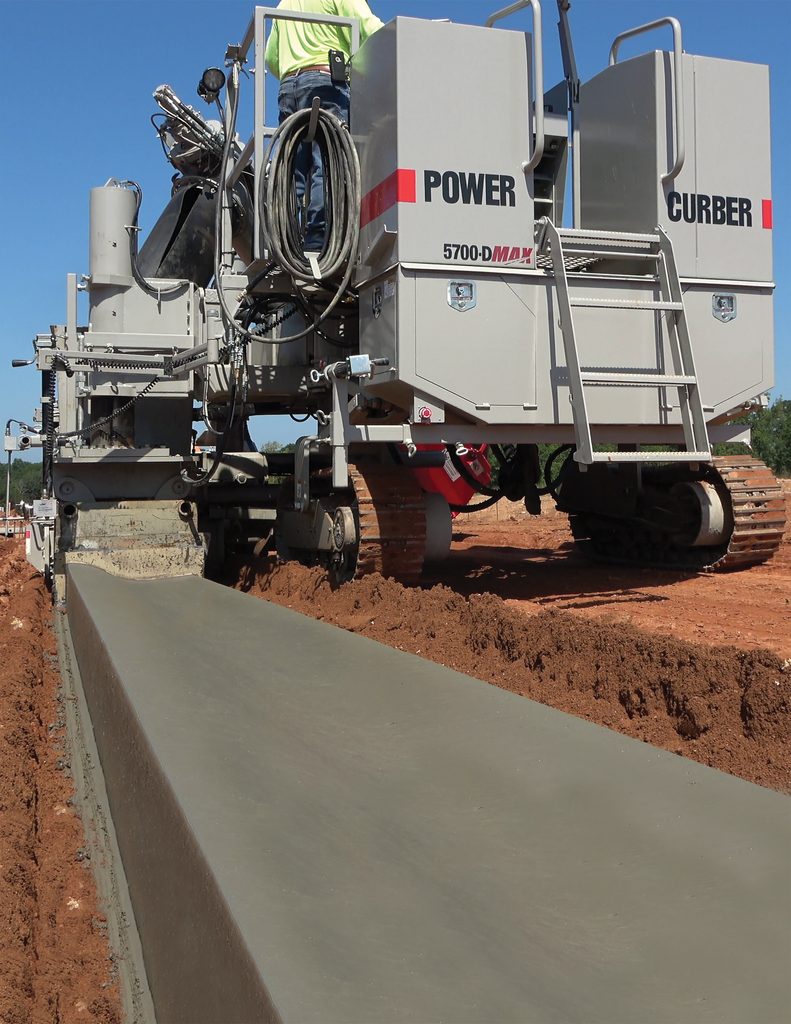

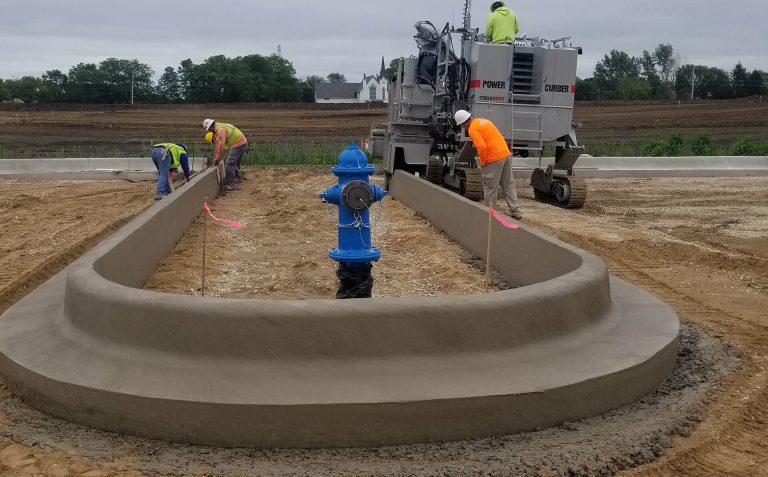

5700-D – The One-Machine Solution
The 5700-D Curb & Gutter Machine offers best-in-class concrete slipform technology. With the responsiveness, ease-of-use and precision of its SlipSmart Control Solution, it’s the ultimate in versatility and post-processing. The 5700-D excels at creating everything from curbs and gutters to highway barriers, irrigation ditches and sidewalks.
Key Features
- SlipSmart Control Solution: Optimal cross-slope controls, auto-calibration and seamless integration with major 3-D control systems.
- Upgraded Control Panel: Single switch operation for crawler posts, master vibrator scale knob, weatherproof switches and more.
- High-Pressure Water System: Ensures efficient cleaning and maintenance, with on-demand activation for optimal water usage.
- Compact Design: Front-track and optional all-crawler steering ensure maneuverability in all sizes of spaces while still being at legal width.
- Wide-Ranging Compatibility: Works with advanced stringless technology from Topcon, Leica and Trimble.
- Auger Conveyor System: Accelerates concrete handling and mixing and is adaptable to varying inclines and traffic conditions.
- Hydraulic Adjustable Offset Mold Mount: Streamlines adjustments and minimizes labor-intensive tasks around obstacles like catch basins.
- 42” Carbide-Tooth Trimmer: Ensures reliable subgrade preparation of up to 6” in challenging conditions, with extensive side shift and vertical movement capabilities for versatile trimming operations.
Making Concrete Curb Machines Since 1953
Legacy Models
Since introducing the 5700 Series more than 30 years ago, Power Curbers has created several models that are still purchasable as pre-owned machines.

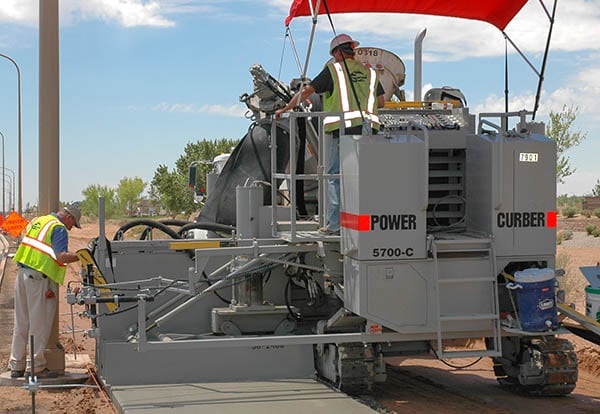

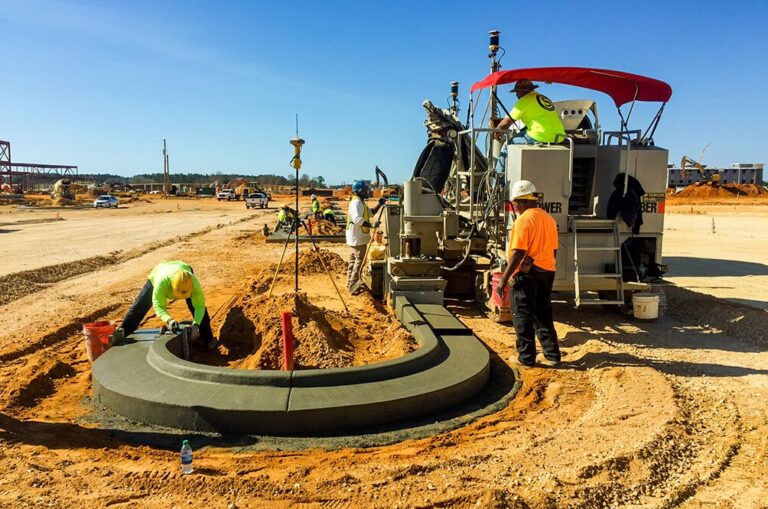

The longest 5700 generation yet (from 2007 through 2019), the 5700-C curb and gutter machine comes with smart amp controls for precise sensitivity settings and GPS and lasers for stringless machine steering.
The enhanced version—the 5700-C-MAX—features a heavier frame, network controls, larger crawlers with a slower gear ratio and a higher-capacity hydraulic system for increased paving and barrier dimensions.
- Overall Benefits: Steering with all three tracks, self-diagnostics, automatic sensor shut-off if sensors deviate from the stringline and an easy-to-read digital display.
- Optional Fully Networked Digital Control System: Enables advanced functionalities like a graphic display, auto-slope control, cruise control, all-crawler steering and integration with 3D/stringless control systems.
- Wide-Ranging Compatibility: Works with equipment from Topcon, Leica and Trimble.

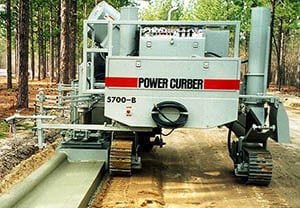

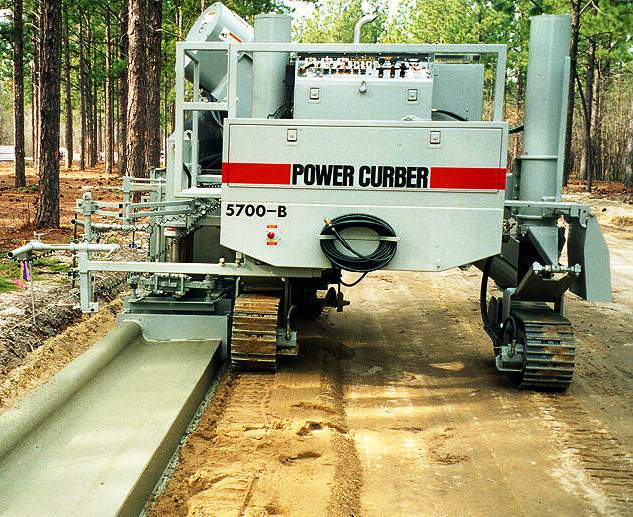

The 5700-B curb and gutter machine—produced from 1994 to 2003—revolutionized curb machines with its auger conveyor system. Compared to the standard 5700, daily production can triple and labor requirements can be cut sustainability.
- Overall Benefits: Offers increased weight, horsepower, taller lift posts and heavy-duty crawlers.
- Auger Conveyor: Enhances mixing efficiency and speeds up pouring while minimizing operational issues.
- Hydraulic Mold Offset: Reduces hand tie-ins at curb obstructions, maintaining speed and quality without deviating from the stringline.
- Versatility: Covers various applications such as curb and gutter work, tight radius projects, sidewalk construction and more.

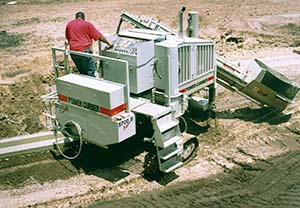

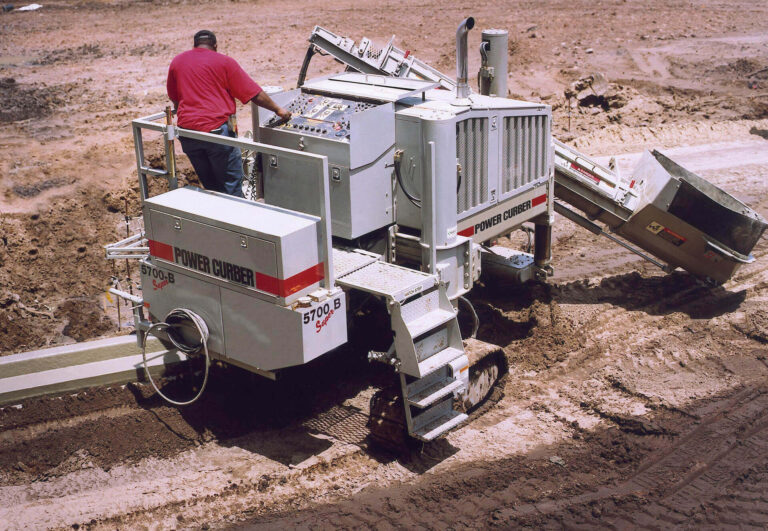

The 5700-SUPER-B curb and gutter machine—produced from 2004 to 2006—offered a 50% horsepower increase from the standard 5700-B, enabling more efficient concrete trimming and pouring.
- Operator Visibility: The raised platform and console provide clear views of the auger and chute.
- Ergonomic Console: Minimizes operator movement, while relocated radiators ensure a cooler working environment by directing hot air away from the platform.
- Streamlined Maintenance: Easily accessible filters and service points, including a removable radiator and conveniently positioned hydraulics.
- Rotary Controls: Enable precise adjustments to ground and conveyor speeds, ensuring consistent curb quality.
- Direct-Drive Conveyor System: Enhances concrete movement and mixing efficiency, with increased crawler torque for easier operation on slopes and soft ground.

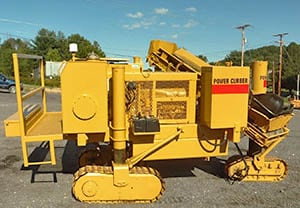

Our original 5700 curb and gutter machine featured the hydraulic offset, allowing it to maneuver around obstacles quickly. In addition to curbs and gutters, it could slipform sidewalks, highway barriers, bridge parapets and special applications up to 8 feet (2.44m) wide.
Shop Pre-Owned Concrete Curb Machines
Power Curbers offers a variety of pre-owned concrete curb machines for sale, including the 5700-C and 5700-SUPER-B.
Shop Pre-Owned MachinesWhat is a Concrete Curb Machine?
A concrete curb machine is a specialized piece of construction equipment used to continually create uniform curbs, gutters and other concrete boundaries. It automates the pouring, shaping and edging process, ensuring consistent quality and efficiency for various projects. For large-scale construction work, these machines provide a cost-effective solution for creating durable, precise concrete structures with reduced manual labor and increased production speed.
Our concrete curb and gutter machines are equipped with features like:
- Concrete feeding and extrusion systems, often using hoppers and molds, to shape concrete.
- Auger or conveyor systems to move and mix concrete efficiently.
- Adjustable molds for different concrete object shapes and sizes.
- Hydraulic systems for precise control and flexibility.
- Elevated operator platforms for better visibility and ergonomics.
- Mobility features like tracks or wheels for easy movement along construction sites.
Power Curbers is the industry leader in concrete curb and gutter machines. All of our compact, nimble options get your jobs done faster and more efficiently—even in tight spots.
What are Common Uses for Concrete Curbing Machines?
Concrete curb and gutter machines from Power Curbers are used to quickly complete a huge variety of paving jobs, including:
- Roadway Construction: Create curbs and gutters that direct water flow and delineate traffic lanes.
- Parking Lots: Construct clear parking boundaries and improve drainage.
- Landscaping: Create decorative and functional borders for garden beds, walkways and driveways
- Sidewalks and Pathways: Form the edges of sidewalks and pedestrian pathways, ensuring smooth and durable boundaries.
- Barrier Construction: Create barriers or parapets up to a certain height for safety and traffic management for highways and more.
- Golf Courses and Parks: Construct well-defined and durable routes.
- Drainage Systems: Create irrigation ditches and other drainage structures to facilitate proper water management.
- Sports Facilities: Build stadium risers and other structures for space consistency and durability.
Contact Us Today!
Power Curbers is proud to offer a versatile range of curb machines that are suitable for any type of project.
We have associates and dealers all over the world ready to assist you with your project.
