Power Curber 7700 Multipurpose Slipform Machine

Overview:

The Power Curber 7700 is a true multipurpose machine that is designed for a wide variety of both offset and paving applications. Like the other machines from Power Curbers, it is as easy to operate as it is versatile.

Watch the 7700 Overview Watch the 7700 Unveiling Download Brochure Request Quote

The 7700 is a 2018 Contractors’ Top 50 New Product Award Winner

Features

Multipurpose

The 7700 is ideal for the contractor who does different types of work, including offset applications like barrier and variable barrier, bridge parapet, or ditches, as well as road paving applications. The machine’s flexibility means it can handle custom designs for other types of offset applications, such as tunnel work.

Simplicity

The 7700 features a fully hydraulic telescoping frame that does not require bolt-on extensions for width changes or time-consuming frame modifications when switching from paving to offset mode.

Transitioning from paving to offset mode has never been easier thanks to the Simple Steer Track Positioning System, which aligns all four crawlers into their new position, all with the touch of a button.

The folding belt conveyor is hydraulically controlled and pivots easily to switch from left- to right-side pouring for offset applications.

The 7700 is also stringless-capable, so you can use it with 3D/GPS machine controls.

Visibility

The operator’s console can be repositioned for left- or right-side pouring or paving for maximum visibility from the platform. The operator is always in the optimal position for every job.

The wraparound walkway offers full visibility of the jobsite, as well as easy access for maintenance.

Productivity

Each crawler has its own individual hydrostatic pump and uses a true power-to-ground system to ensure smooth paving at the lowest speeds.

Vibrators can be individually controlled and adjusted and are linked together for simple system-wide adjustment using Proportionate Master Control.

The conveyor on the 7700 will meet the most challenging conditions for placing concrete for large offset applications.

Secondary sensor on/off controls are located on each leg, allowing the crew to adjust the sensors from the ground, such as for moving the sensors around obstacles while pouring.

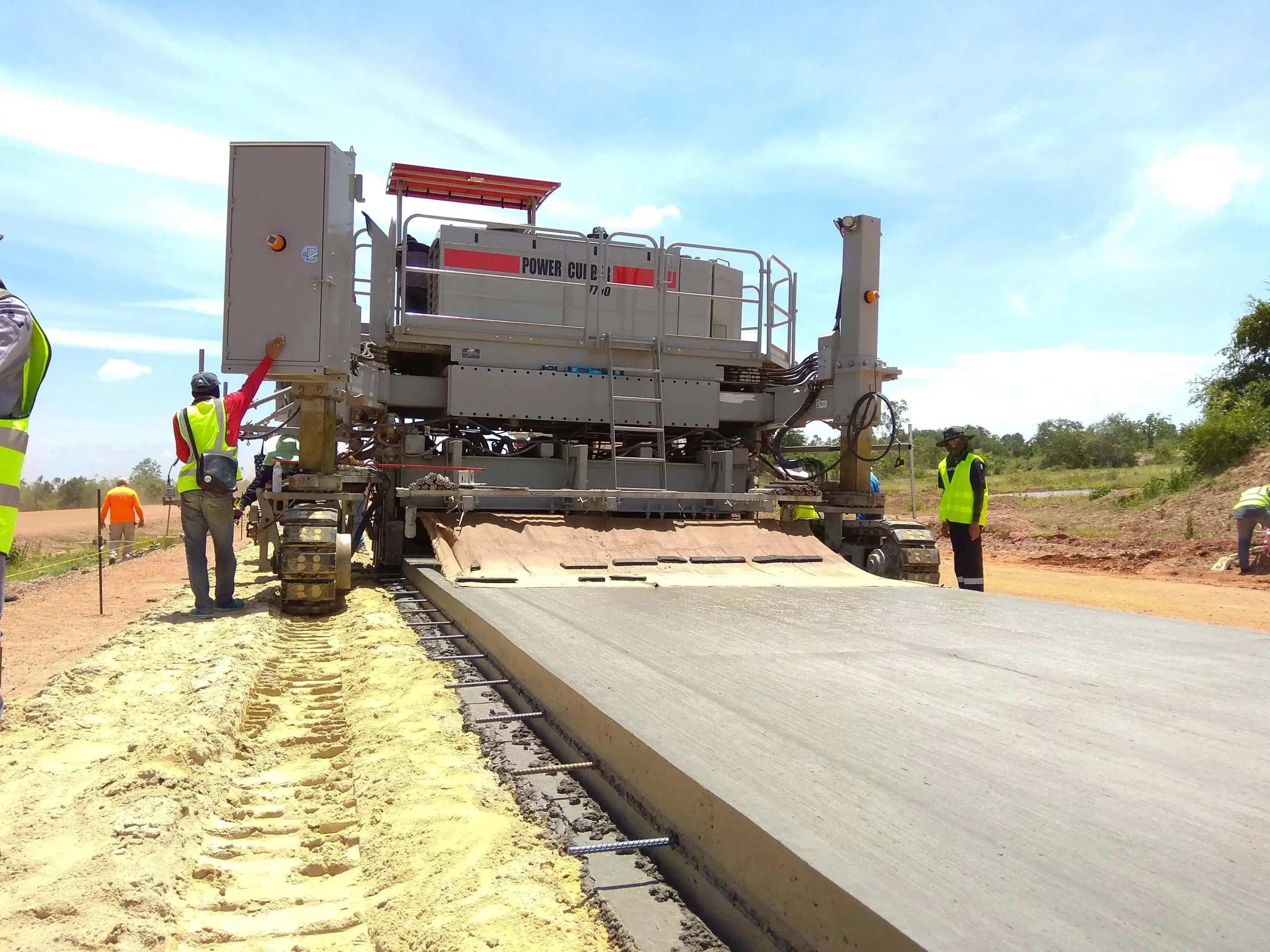

Paving Mode

The 7700 is a fully functional road paver, with dowel bar, tie bar, and center bar inserters available.

As a paver, the 7700 also features hydraulic sides, edge overbuild, and crowning capabilities. Optional features include a tamper bar, auger or plow, and finishers.

Offset Mode

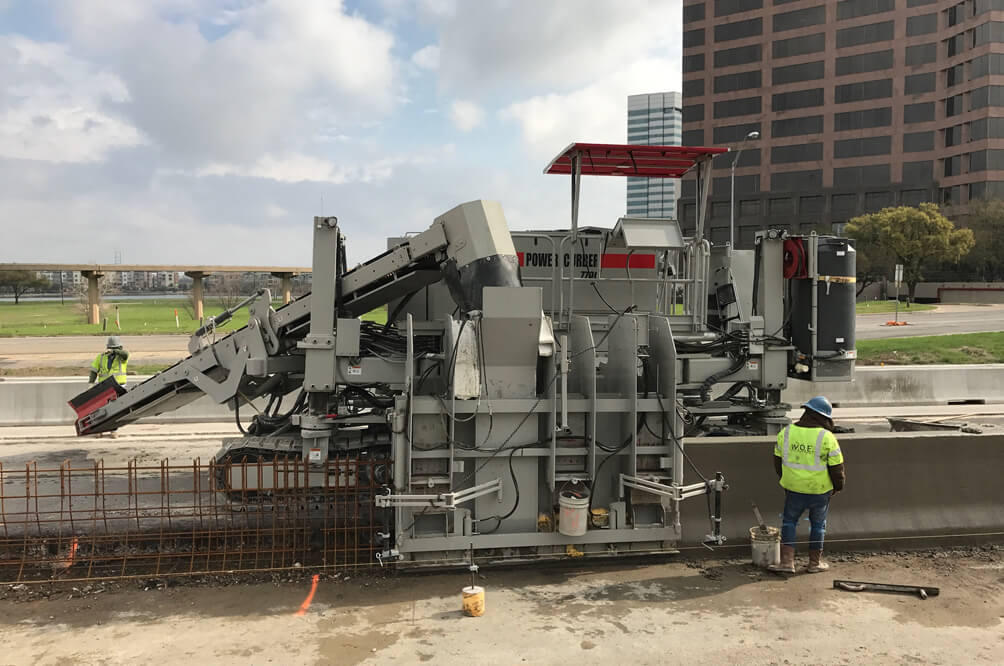

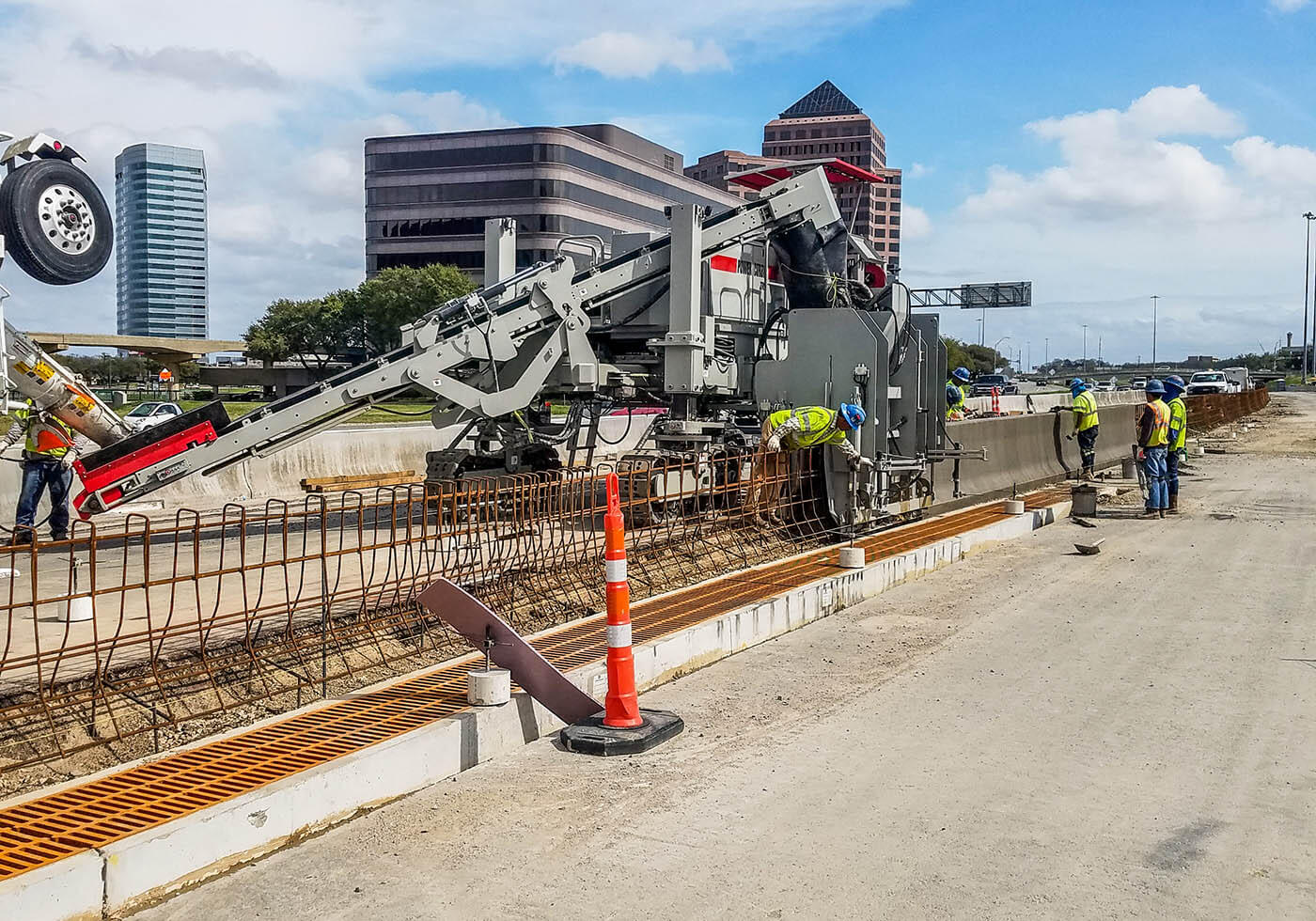

The 7700 can handle even the largest offset applications, including barrier, variable barrier, tunnel work, ditches, agriculture projects, sidewalks, and paths up to 12 ft (3.7 m) wide, and more.

Zero-Clearance Mode

The 7700 can be configured so that the paving pan is offset to the rear of the machine. This allows it to travel within the profile of the pavement, so that there are no side-clearance requirements. The conveyor is positioned under the machine so that concrete trucks can easily unload.

Options

Options

Coming Soon

Applications

Applications

Coming soon

Specifications

Slipform Paving

Barrier / Parapet Height: Maximum 8’ (2.4 m)

Offset Paving Width: Maximum 12’ (3.7 m)

Paving Mode Width: Maximum 20’ (6 m)

Paving Mode Depth: Maximum 16” (40.6 cm)

Zero-Clearance Paving Width: 10-13′ (3-4 m)


Controls

Operator’s Controls: SlipSmart Control Solution. 24-volt.

Rail Console: Can move to right side of machine for right-hand pouring.

Engine Console: Features two cup holders and a 12-volt power outlet.

Options: 3-D/GPS stringless control system integration.


Engine

Type: Cummins QSB6.7 diesel engine. Tier 4 final.

Power: 220 HP (165 kW) @ 2200 RPM

Options: Tier 3 engine available in select countries.


Crawlers & Posts

Type: Four hydraulically powered crawler tracks

Tracks: 13.7 in (35 cm) wide x 89.5 in (227.3 cm) long

Speed: 79’/min, (24 m/min)

Post Extension: 48” (121.9 cm)

Options: Polyurethane pads are available for crawlers instead of steel tracks.


Belt Conveyor

Drive: Hydraulic motor with variable speed pump

Speed: 920 ft/min (280.4 m/min)

Size: 22 in (55.9 cm) wide, 28 ft (8.5 m) long

Features: Pivots for left or right-side pouring and folds for shipping.


Vibration

Vibrator Circuits: Eighteen hydraulic circuits with variable speed and both independent control and Proportional Master Control capabilities.

Vibrators: Straight or bent vibrators are available.


Water System

Washer: High-pressure (3,000 psi) and low-pressure (80 psi) systems available.

Tank Capacity: 150 gal (567.8 L)

Options: Additional water tanks can be mounted on any post.


Features

Light Kit: 2 LED work lights per post

Canopy Top: Hinged canopy top can be easily raised for machine operation or lowered for transport

Safety Equipment: 8 emergency stop buttons (1 per post, 2 on conveyor, 1 on rail console, 1 on engine console). Backup alarm is also included.


Service Capacities

Fuel Tank: 90 gal (340.7 L) ultra low-sulfur diesel (ULSD)

DEF Tank: 5 gal (18.9 L), diesel exhaust fluid (DEF)

Hydraulic Tank: 125 gal (473.1 L)

Engine Oil: 20.8 quarts (19.7 L)

Pump Gearbox: 4.38 quarts (4.1 L)


Net Weight

Machine: 54,000 lbs (24,494 kg) with conveyor, crawlers, and straddle legs. 80,000 lbs (36,287 kg) at 20 ft (6 m) paving width.


Transport Dimensions

The 7700 will transport at US legal width on a single trailer in its standard configuration.

Length: 38 ft (11.6 m)

Height: 10 ft (3 m)

Width: 7.5 ft (2.3 m)
