SF-2404

Overview:

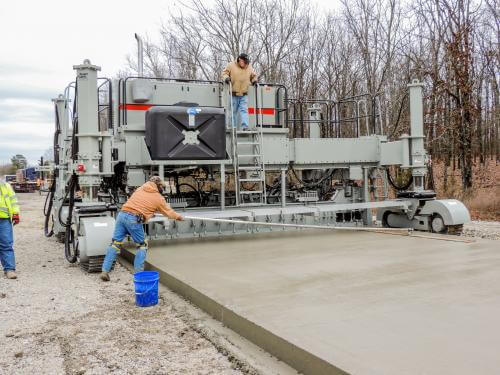

SF-2404The 2400 Series of slipform pavers from Power Pavers, including the SF-2402 and SF-2404, can be used for conventional paving, offset paving, and custom applications. The 2400 Series pavers are ideal for residential and intermediate paving projects and are available in both two-track (SF-2402) and four-track (SF-2404) configurations.

Watch our SF-2404 unveiling video from the 2017 ConExpo!

Request A Quote or Request More Information

Features

Simplicity

The SF-2404 features a telescoping frame to allow simple width adjustment from 8 ft (2.5 m) to 20 ft (6 m) without having to add rigid frame extensions.

One-touch track positioning and a simple rotary knob to control steering make the 2400 Series machines easy to operate.

The 138:1 track drive gear ratio with two-speed H1 bent axis motor provides smooth paving at extremely low speeds as well as faster speeds for moving around the jobsite.

When you’re done paving, it’s a quick change from paving to transport mode. The operator can prep the machine for loading without ever having to leave the controls.

Visibility

The wraparound walkway offers complete visibility of the machine’s operation. Three ladders and a rear walkway provide easy access to the machine for operation and maintenance.

Optional backup cameras can be displayed at the operator’s console for additional visibility in tight spaces.

Productivity

The versatile SF-2404 can pave in conventional, inline left, and inline right modes and can meet the needs of any paving project up to 24 ft (7.5 m).

Vibrators can be controlled individually or globally from the operator’s console. The optional Smart Vibe system monitors and records vibrator speeds.

The SF-2404 is stringless-ready from the factory and is validated for use with Leica, Topcon, and Trimble 3D/GPS control systems.

Options

Applications

Specifications

Slipform Paving

Profile Pan: 48 in (1.2 m) profile pan with power crown. Pan automatically adjusts for grade variations up to 24 in (60.9 cm) during paving. End pan overbuild compensates for edge slump.

Adjustments: Profile pan, tracks, and sideforms automatically adjust from running with both tracks on the ground to one or both tracks running on adjacent slab with no modification.

Sideforms: 32 in (81 cm) high sideforms for containing enough concrete during deep pours.


Engine

Type: Cummins QSB6.7 water-cooled, turbocharged 6.7 liter (403 cubic in) inline 6-cylinder diesel engine, Tier III. 12-volt electrical system with 130 amp alternator.

Power: 220 HP (165 kW) @ 2200 RPM

Options: Tier 4 final engine available.


Service Capacities

Fuel Tank: 104 gal (394 L)

Hydraulic Oil Tank: 238 gal (900 L)

Engine Oil: 8 gal (30 L)

Engine Coolant: 6 gal (23 L)

Auxiliary Water Supply: 251 gal (950 L)


Spreader-Auger

Auger: 16 in (40.6 cm) diameter split reversible auger with hard-surfaced flighting

Drive: Heavy-duty 29.9 in3 (490 cc) hydraulic motors with 3.27 to 1 reduction for power to move low-slump concrete at widths over 7.5 m


Vibration

Vibrators: Twelve 2.25 in (5.7 cm) diameter head hydraulic “L” shaped paving vibrators with individual pressure compensated controls

Options: Up to 24 vibrators. Smart Vibe system for monitoring and recording vibrator speed.


Track Drive System

Type: Four heavy-duty 71 in (1805 mm) track systems

Tracks: 12 in (305 mm) wide triple grouser steel tracks

Speed: Travel 0-48 ft/min (0-14.5 m/min). Paving 0-16 ft/min (0-5 m/min)

Options: Bolt-on 12 in (30.5 cm) wide, 1 in (2.5 cm) thick polyurethane pads


Paving Dimensions

Standard Paving Depth: 0-17.7 in (0-45 cm)

Standard Paving Width: 8.2-19.7 ft (2.5-6 m)

Optional Paving Width: To 24.6 ft (7.5 m)


Transport Dimensions

Height: 10.5 ft (3.2 m)

Width: 11.8 ft (3.6 m) with paving kit, 10 ft (3 m) without paving kit

Length (without paving kit): 29.7 ft (9.05 m)


Operational Specs

Height: 10.5 ft (3.2 m)

Width: 58 in (147 cm) wider than paving width

Length: 14.5 ft (5.02 m)

Weight: SF-2404 – 40,000 lbs (18,144 kg) to 46,000 lbs (20,865 kg). SF-2402 – 22,700 lbs (10,297 kg)


Optional Equipment

Curb Mold Inserts: Can be added on one or both sides of profile pan

Power Wash: Hydraulically driven 4 gal/min (15.1 L/min) pump delivers 2,000 psi for cleanup and utility use

Paving Options: Center bar, side bar, or dowel bar inserters, float pan, final finisher, oscillating correcting beam

Light Kit: LED work lights
